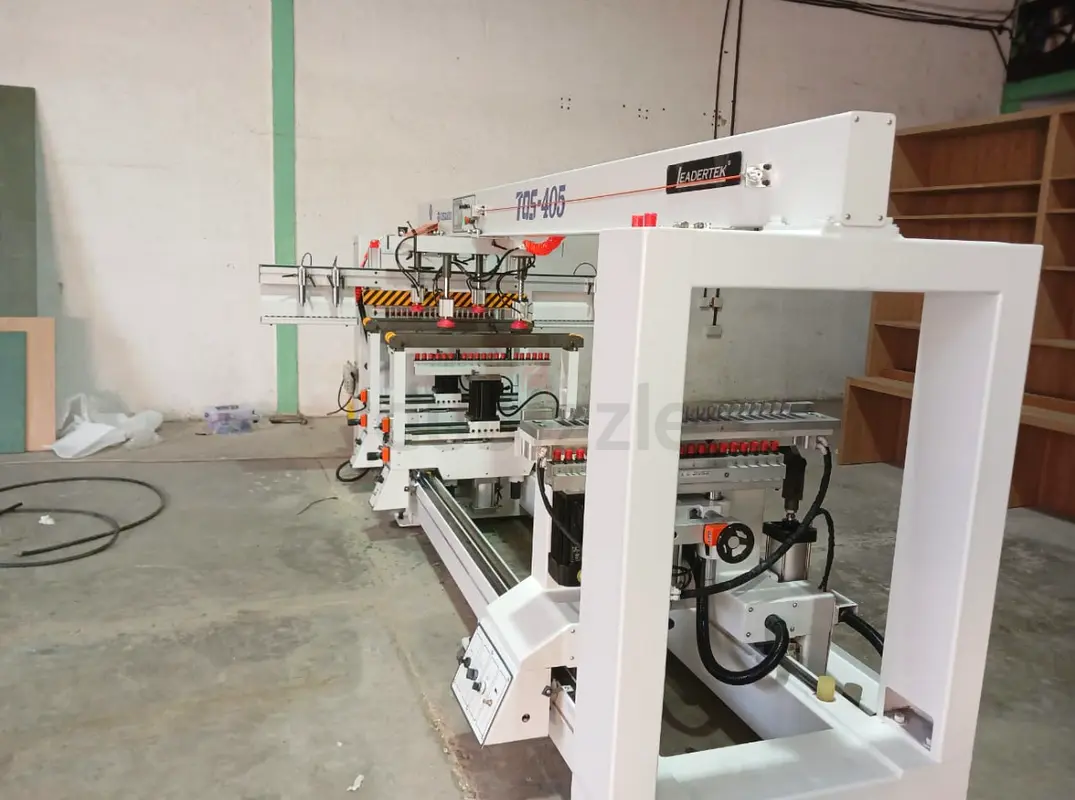

Multi boring machine for sale

Description

Technical parameters Maximum hole spacing 2600mm-640mm Minimum machining hole spacing 250mm-32mm Maximum processing length 2500mm Minimum processing length 130mm Thickness of the workpiece 12mm-40mm The number of rows of vertical drills 2 The number of left&right horizontal drill rows 2 Total number of reels 88 Quick coupling assembly diameter 10mm Maximum drilling depth 40mm Maximum borehole diameter 13mm (Adjacent drills) 35mm (Single drill) Standard drill lengths 57mm/ 70mm Spindle speed 2840rpm Total power 6KW Operating air pressure >0. 6mpa Motor voltage 380V/50Hz Machine weight 2100kg Dimensions 4050*2500*1620mm
